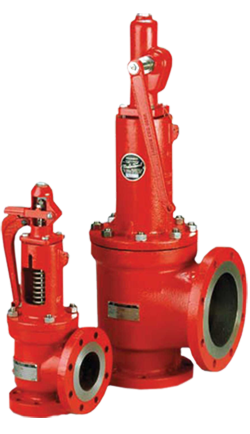

  Farris Safety Relief Valve Series 2600

    Specifications
    ASME NB Certified: Air, Steam & Water European CE Approved Sizes 1″ X 2″ to20″ X 24″. Actual orifice areas from 0.150 to 176.7 square inches.Pressures from 15 to 6000 psig. Temperature range from -450° F to +1500° F. Steel body and bonnet with stainless steel trim.




    Ordering Information
Optional balanced bellows design isolates working parts and top-works from fouling or corrosive service, and nullifies the effects of back pressure on valve performance.

The "D" to "T" orifices meet API Standard 526 covering orifice areas and center-toface dimensions. Super capacity types range from "W" (63.62 sq. in.) to "Z" (176.7sq. in.) and have a maximum set pressure limit of 300 psig.

Optional materials of construction include complete 316 stainless steel, Monel®,and Hastelloy® C.Also available with materials in compliance with NACE standards.Higher temperature models use chrome moly body and bonnet.

Optional O-ring elastomer seat available for maximum tightness.

Applications: air, steam, gas, vapor, and liquid process applications.

Connection(STD.)
