Product Overview |
|
| |

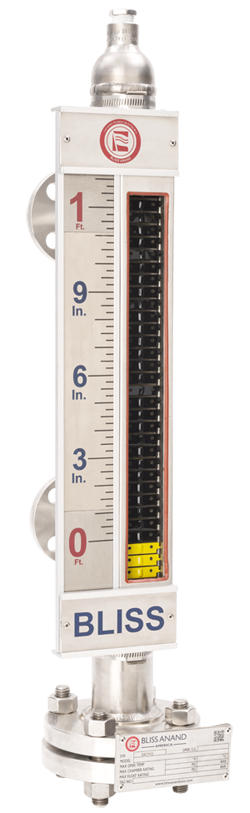

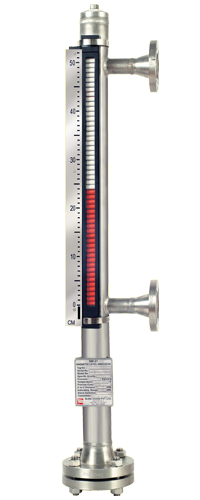

Bliss Anand Magnetic Level Gauges are highly accurate, low-maintenance alternatives to sight glasses and other outdated level indicators. They provide redundant, non-invasive level indication while eliminating leak points and fugitive emissions.
Their robust design is ideal for high temperatures, high pressures and corrosive services.
Bliss Anand gauges are easy to install and require no extra piping in most applications. |
|
| |
|
| |
|
| |
|
| |
|
|
| |
Specification |
|
| |
Cage - 2-3" NB Pipe: SS-316 / 316L/Alloy 625 / Alloy 825 / 904L / UNS - 31254 / MONEL 400 / Titanium / Host C276, other materials.
Max Center to Center Dist.- 60ft./18.28m.
Max Depth of Top Mounted - 20 ft/6000mm (Style H).
Connecting Flanges - ANSI B16.5.
Max. Viscosity - 500 CST.
Pr. Rating - 200 bar/3000 PSI Maximum. Max Opr. Temp. - 1000°F for SS-316/316L/Alloy 625/ Alloy 825 / 904L / UNS - 31254 80°C/176°FforPVDF 40°C/104°FforPVC.
Min Sp.GR of Service liquid - 0.30.
Min Diff in Sp Gr Between Interface Liquid - 0.10 (less than 0.10 consult factory).
Accuracy - ±10mm/3/8".
|
|
| |
|
|
| |
MOC |
|
| |
 304 SS. 316 SS. |
|
| |
Inconel 625. Inconel 25. Hastelloy-C 276. PVDF. |
|
| |
Polypropylene. PVC/CPVC. Special. |
|
| |
|
|
