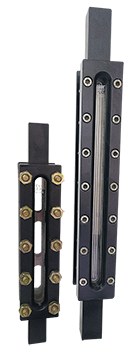

  Series-E Liquid Level Gauge
  Product Overview
  Bliss Series-E Reflex & Transparent Gages for Pressures Up to 300# ANSI. The Series-“E” gauge is Medium Pressure level gauge with increased visible range per gage section. The Series-“E” features a recessed gasket surface, bar-stock covers and ASTM Alloy grade bolting. These gauges are not recommended for Saturated Steam service. These gages can be supplied with a variety of “Bliss” gages cocks / valves with Offset and Straight Patterns.
  Key Features
     Recessed Gasket Seat in Liquid Chamber and Cover
     Pressure up to 300# ASME Gage.
     Tempered Borosilicate Glass
     Imported die-cut high quality Non-Asbestos Gaskets.
     NACE MR-0175 & MR-0103.
     All Gages features a continuous, one piece chamber
regardless of length
     Gage Connection 1/2” NPT (F)
  Series-E Liquid Level Gauge
